Urban Rest Stop

How do we build near the highway?
How do we design for cars?

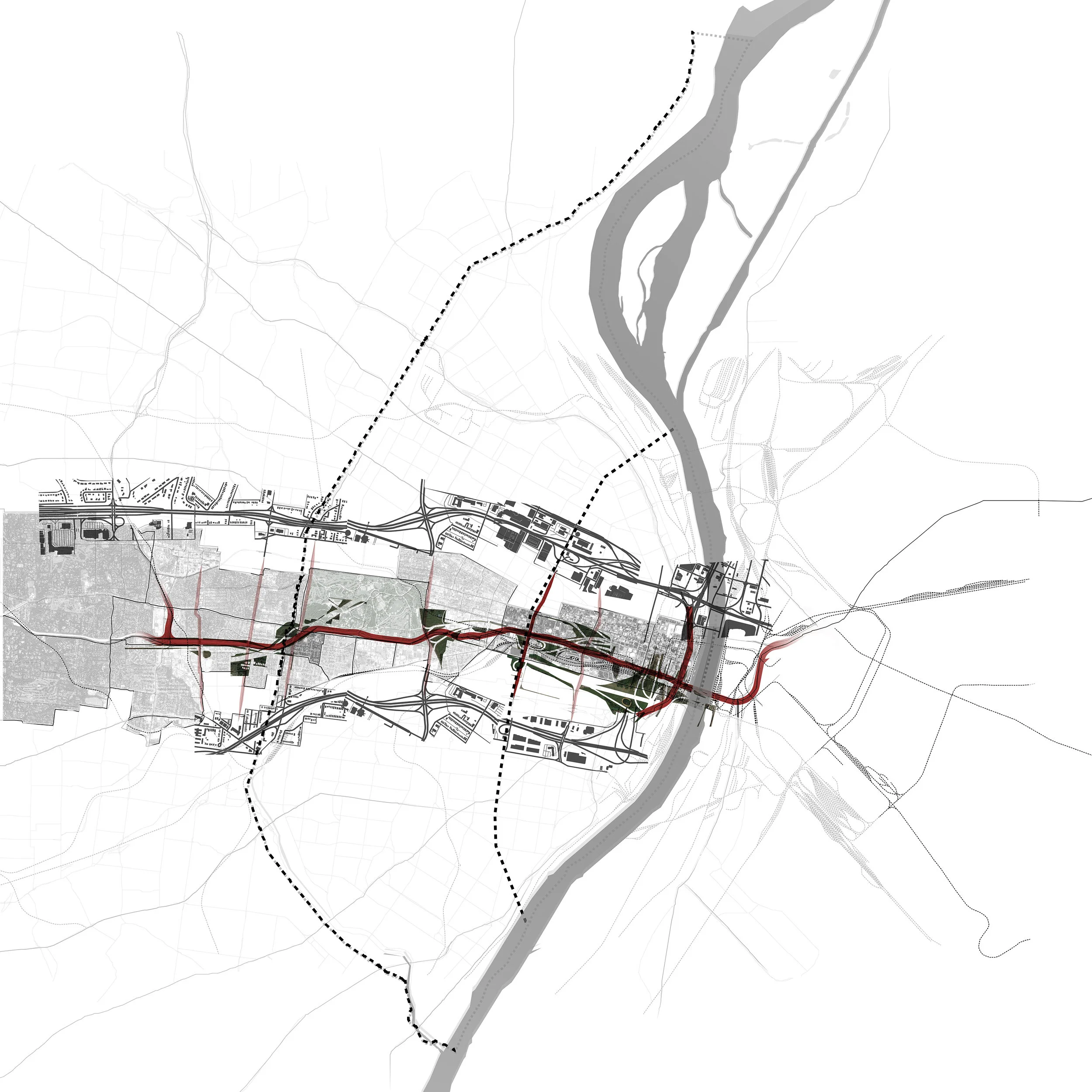

Analyzing lost space along interchanges on highway I64 in St. Louis Missouri

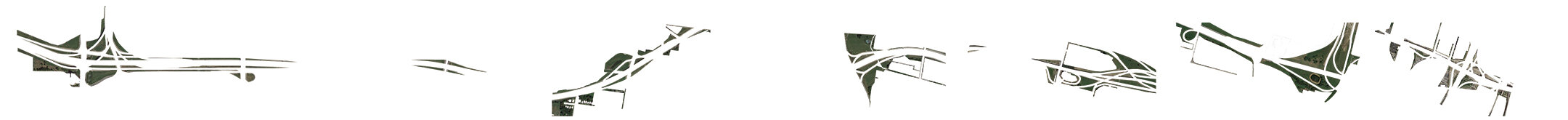

figure ground only lost space.jpg

+

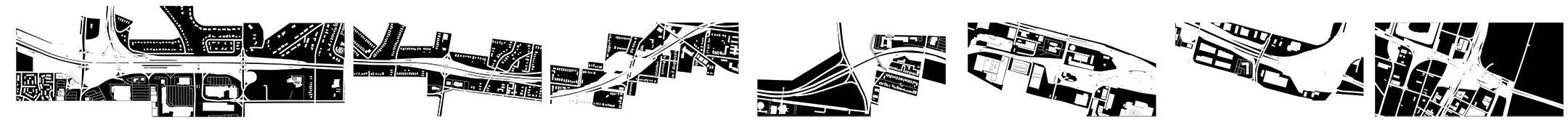

inverse black + white.jpg

=

figure ground lost space green.jpg

Highways and leftover space

Highways have an interesting impact on the urban fabric of cities: while they create high-speed connections for vehicles, this is done at the expense of the pedestrian and public space. This urban rest stop is intended to reclaim the leftover spaces created by interstate highways in order to mediate the need to move through a space with the desire to arrive to a space.


Site Views


Separator turns connector

Part of the intent was to solve the disconnectivity between two sections of the city: St. Louis University Main Campus and the Medical Campus.


Program

Located at Interstate 64 and Grand Blvd, this proposal is primarily a automated parking system for self-operated and electric vehicles.  Designed to be used by daily commuters and the Saint Louis University students nearby, the program is geared towards celebrating movement, mobility and speed and also acts as a commentary on the future of transportation.


Level 1 Floor Plan


Transverse sections


Transverse Movement

responding to the spine by circulating on axis in order to understand program adjacencies


Longitudinal Movement

responding to the spine by circulating on axis in order to understand program adjacencies


sequence collage copy.png

Perception at high speeds

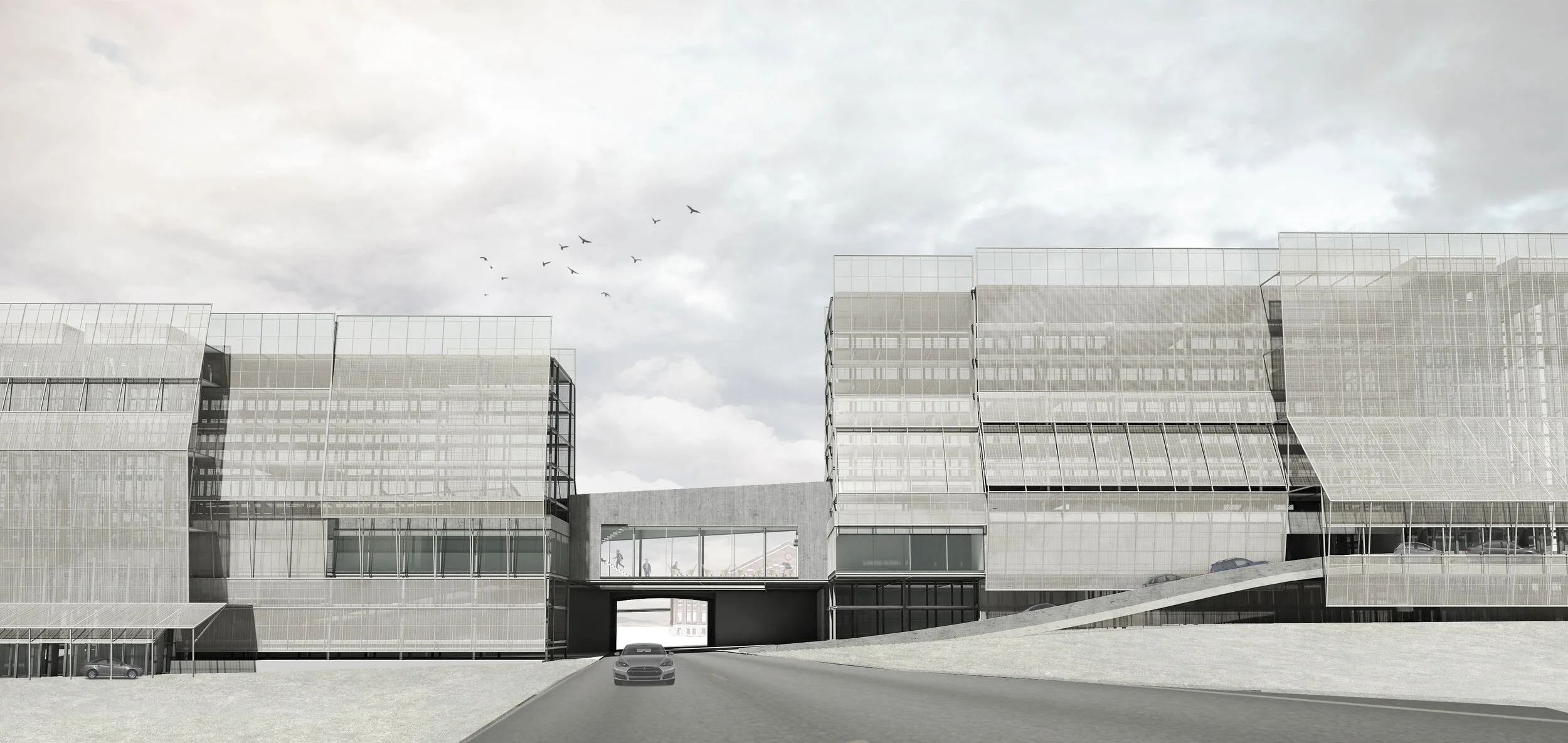

Because the site is highly visible, the building essentially becomes a billboard, viewed from the highway at high speeds. The façade system is built of a perforated metal that basically acts as a lantern when illuminated at night. In this case, the perception of the building is altered based on the direction of approach.

64 night.jpg

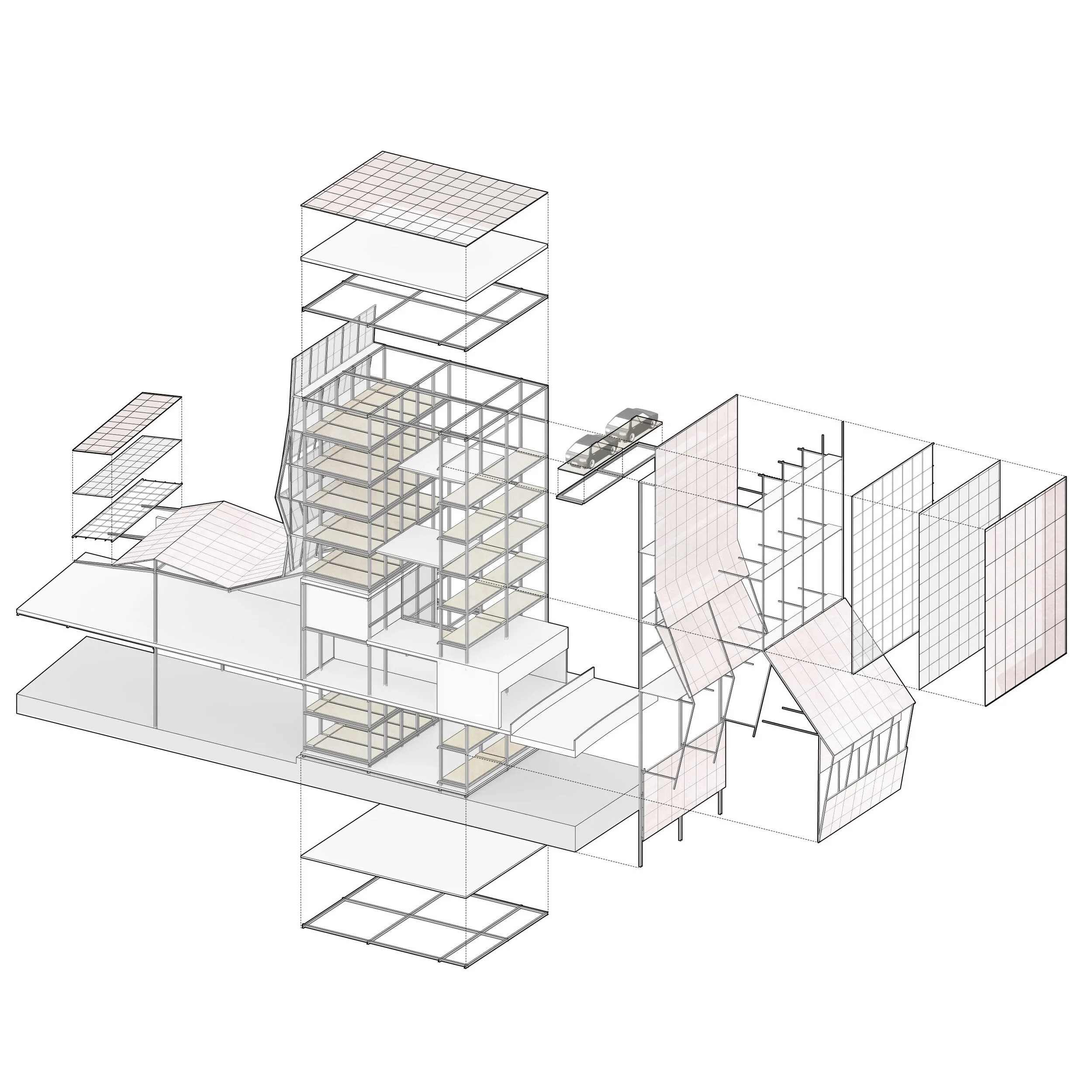

Assembly and language

The skin embodies a layered language in how it systematically peels away from the spine to reveal what is behind. The south facade, roof and canopies are outfitted with a transparent PV glass array to celebrate the generation of energy on site.


Context specific

the unique site characteristics lends itself to unique needs. Site integration at multiple levels is achieved through careful consideration of scale and approach: both by car and by foot.



vehicular approach

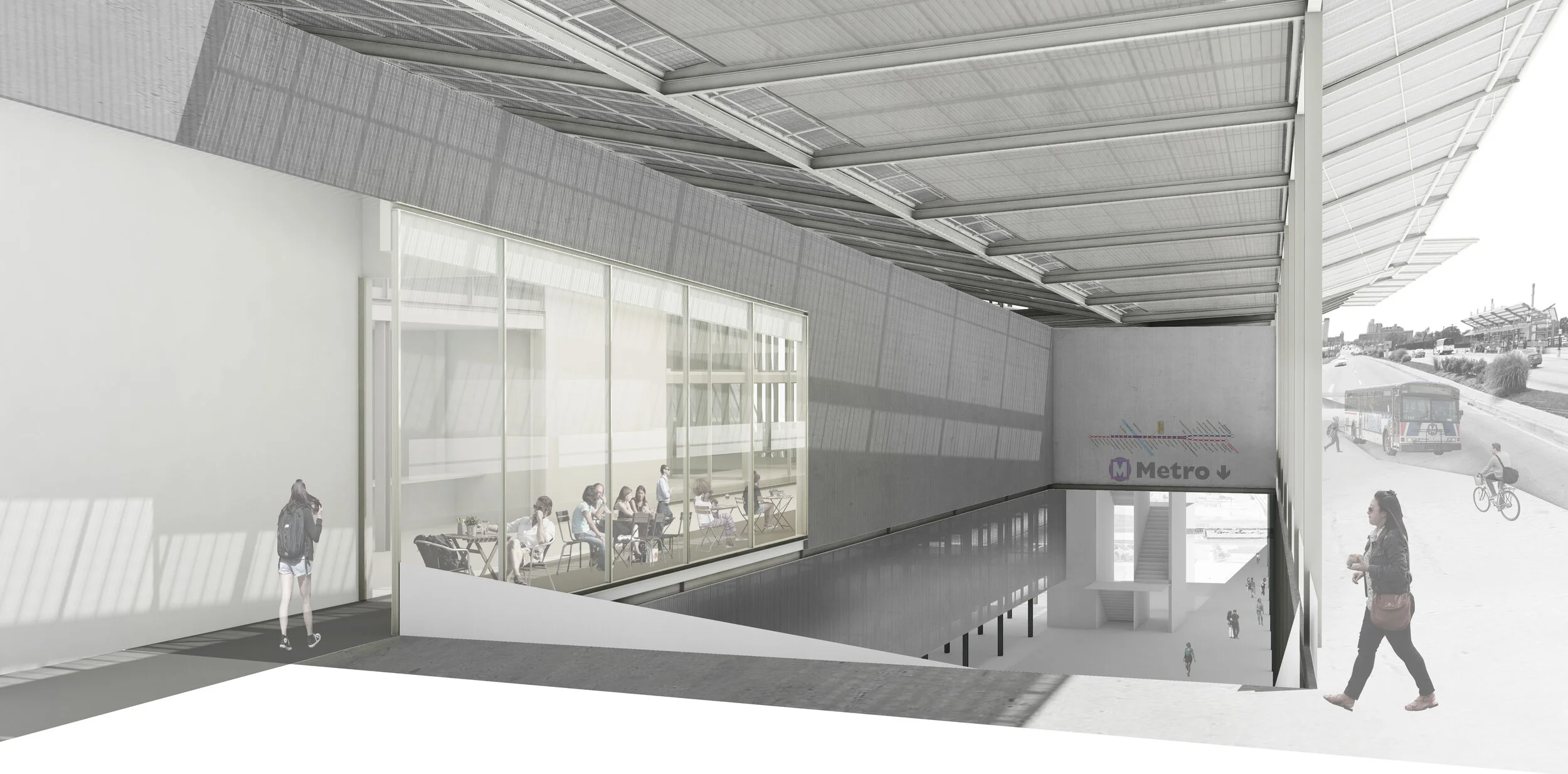

pedestrian approach
